Summary

Adds a new Sidebar compound component to @cloudflare/kumo — a composable sidebar navigation with collapsible groups, icon-only mode, peeking, resizing, keyboard shortcuts, sliding views, and responsive mobile support.

Sub-components

Sidebar.Provider · Sidebar.Root · Sidebar.Header · Sidebar.Content · Sidebar.Footer · Sidebar.Trigger · Sidebar.Group · Sidebar.GroupLabel · Sidebar.GroupContent · Sidebar.Menu · Sidebar.MenuItem · Sidebar.MenuButton · Sidebar.MenuAction · Sidebar.MenuBadge · Sidebar.MenuSub · Sidebar.MenuSubItem · Sidebar.MenuSubButton · Sidebar.Separator · Sidebar.Input · Sidebar.Rail · Sidebar.ResizeHandle · Sidebar.MenuChevron · Sidebar.Collapsible · Sidebar.CollapsibleTrigger · Sidebar.CollapsibleContent · Sidebar.SlidingViews · Sidebar.SlidingView

Features

  • Expand / collapse with configurable collapsible mode (icon, offcanvas, none)
  • Peeking — temporarily expand collapsed sidebar on hover, with explicit footer exclusion
  • Resizable — drag handle with configurable minWidth / maxWidth and auto-collapse threshold
  • Keyboard shortcut — configurable via keyboardShortcut prop (e.g. mod+b), exposed in trigger tooltip
  • Sliding views — animated horizontal transitions between navigation surfaces (e.g. account ↔ zone)
  • Collapsible groupsSidebar.Collapsible and Sidebar.Group with defaultOpen support
  • Icon-only modeMenuButton tooltips auto-show when sidebar is collapsed
  • Left / right side — via side prop on Provider
  • Responsive mobile — sheet-based overlay via Base UI Dialog on narrow viewports
  • Animated footer trigger — custom SVG panel icon matching Stratus NavFooter, with aria-expanded, aria-keyshortcuts, and tooltip
  • Sticky footer — pinned to sidebar bottom in all states (expanded, collapsed, peeking)

Docs

  • Full documentation page at /components/sidebar with 9 interactive demos: Basic, Collapsible Groups, Toggle, Full (kitchen sink), Resizable, Right Side, Peeking, Keyboard Shortcut, Sliding Views

Validation

  • pnpm typecheck — 0 errors (both kumo and kumo-docs-astro)
  • pnpm --filter @cloudflare/kumo test — 708 tests pass (39 sidebar-specific)
  • pnpm lint — 0 new errors (1 pre-existing no-noninteractive-element-interactions on <aside>)

No breaking changes

New component addition. No existing APIs modified.

- Match Stratus sidebar dimensions: menu padding, item height, gaps,
  text sizing, icon offset, transitions
- Move px padding from Menu to Content
- Match Stratus GroupLabel: grid-rows animation, border separator
- Match Stratus Separator: div-based with py-3, inner border-b
- Update sidebar width to 16.25rem
- Fix caret right-alignment on MenuButtons
- Add gap-2 for badge spacing in MenuButton and MenuSubButton
- Add cursor-pointer to all clickable sidebar elements
- Add before pseudo-element for 1px vertical gap coverage
- Restyle SidebarInput to match Stratus search bar
- Remove collapsible group path (collapsible prop, GroupContent,
  collapsible GroupLabel branch) — use Sidebar.Collapsible instead
- Update KUMO_SIDEBAR_STYLING.width.expanded to 16.25rem
- Remove SidebarCollapsibleGroupDemo and docs section
@cloudflare cloudflare deleted a comment from ask-bonk bot Apr 1, 2026
@cloudflare cloudflare deleted a comment from ask-bonk bot Apr 1, 2026
@cloudflare cloudflare deleted a comment from ask-bonk bot Apr 2, 2026
@cloudflare cloudflare deleted a comment from ask-bonk bot Apr 2, 2026
@cloudflare cloudflare deleted a comment from ask-bonk bot Apr 2, 2026
@stritt
Copy link
Copy Markdown
Collaborator

stritt commented Apr 2, 2026

/bonk review this code

@ask-bonk
Copy link
Copy Markdown
Contributor

ask-bonk bot commented Apr 2, 2026

@stritt Bonk workflow was cancelled.

View workflow run · To retry, trigger Bonk again.

@stritt
Copy link
Copy Markdown
Collaborator

stritt commented Apr 2, 2026

/bonk review this code

@pkg-pr-new
Copy link
Copy Markdown

pkg-pr-new bot commented Apr 2, 2026

npm i https://pkg.pr.new/@cloudflare/kumo@340

commit: 9362dd0

@github-actions
Copy link
Copy Markdown
Contributor

github-actions bot commented Apr 2, 2026

Docs Preview

View docs preview

Commit: 9362dd0

@github-actions
Copy link
Copy Markdown
Contributor

github-actions bot commented Apr 2, 2026

Visual Regression Report

14 screenshot(s) with visual changes:

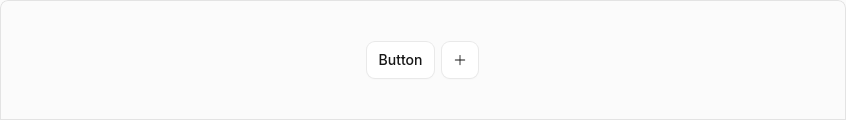

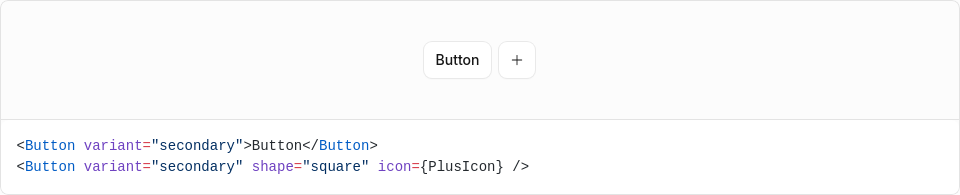

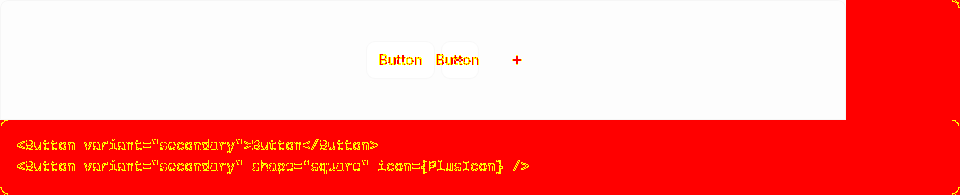

Button / Basic

83,225 px (44.46%) changed

Before After Diff
Before After Diff

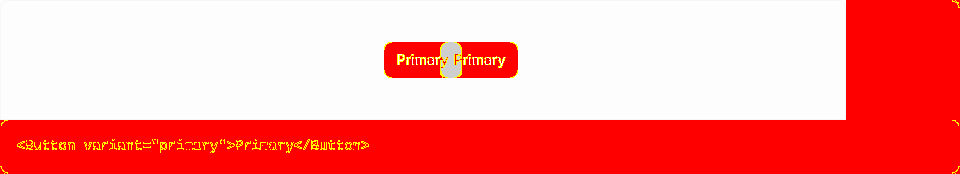

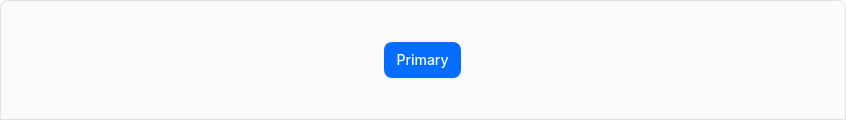

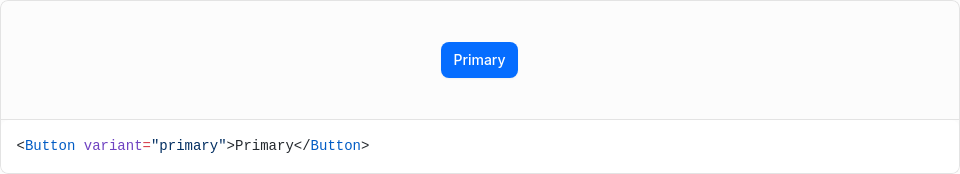

Button / Variant: Primary

68,006 px (40.71%) changed

Before After Diff
Before After Diff

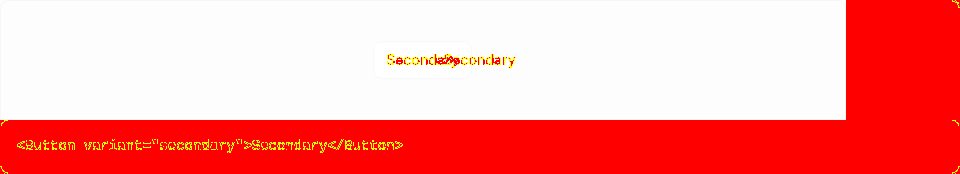

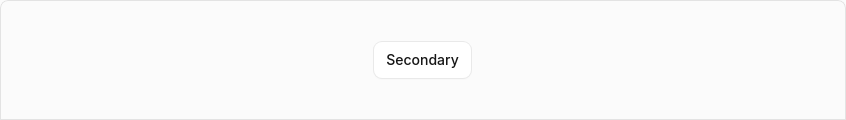

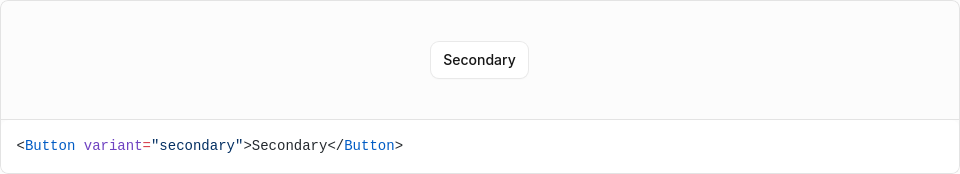

Button / Variant: Secondary

64,552 px (38.64%) changed

Before After Diff
Before After Diff

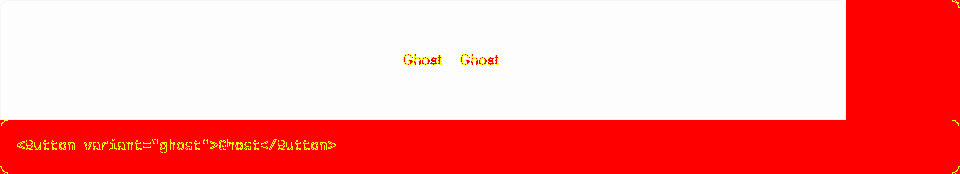

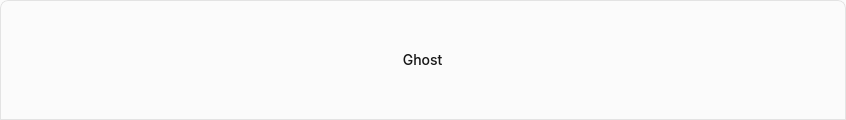

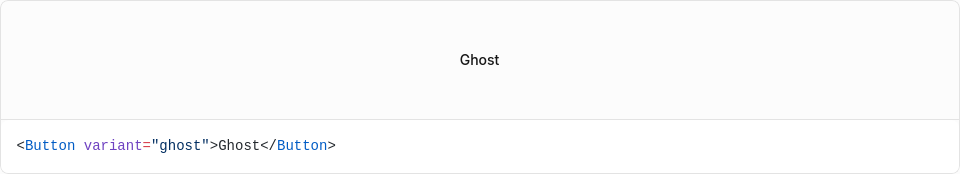

Button / Variant: Ghost

64,637 px (38.7%) changed

Before After Diff
Before After Diff

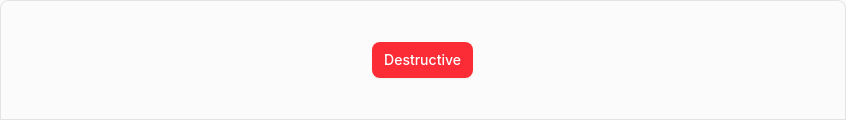

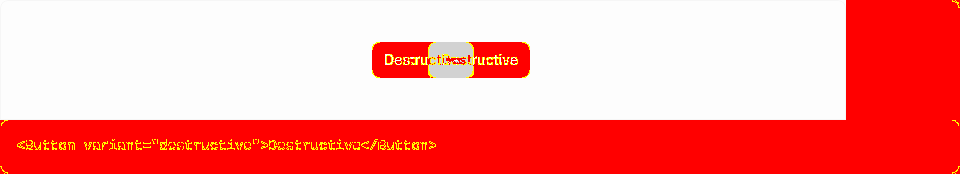

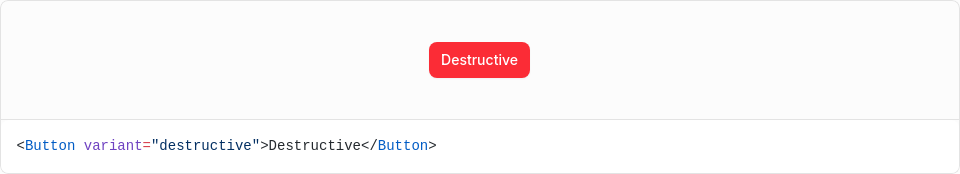

Button / Variant: Destructive

67,851 px (40.62%) changed

Before After Diff
Before After Diff

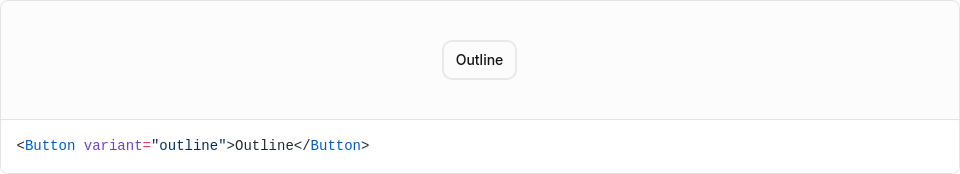

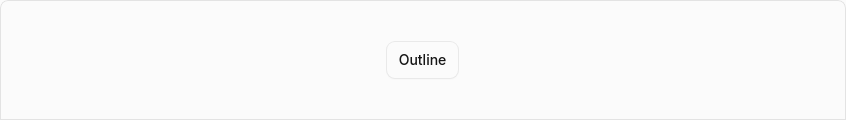

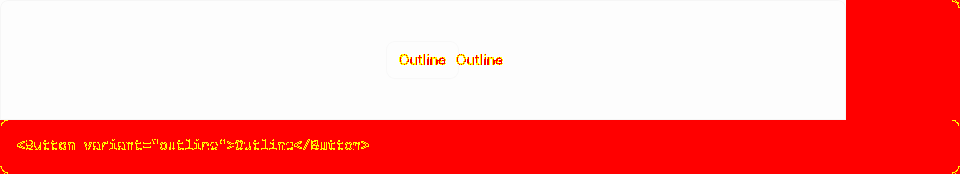

Button / Variant: Outline

64,628 px (38.69%) changed

Before After Diff
Before After Diff

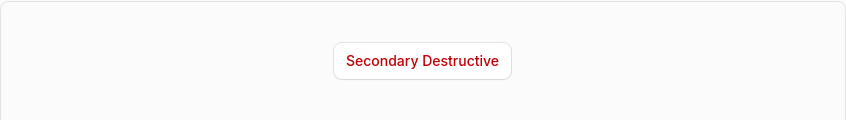

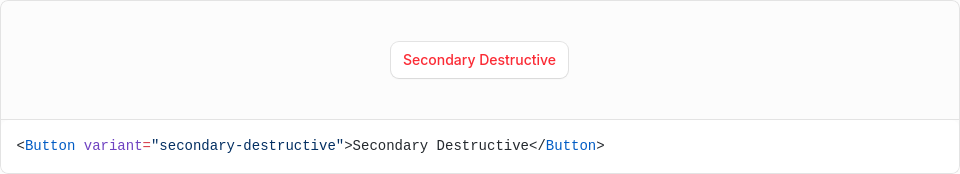

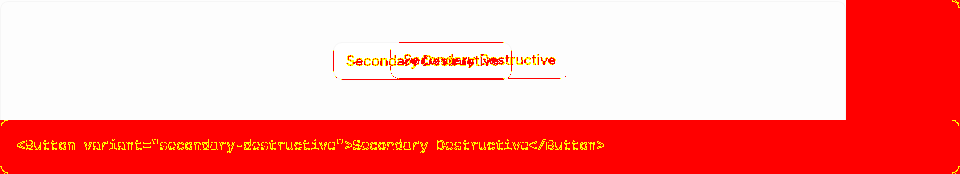

Button / Variant: Secondary Destructive

64,844 px (38.82%) changed

Before After Diff
Before After Diff

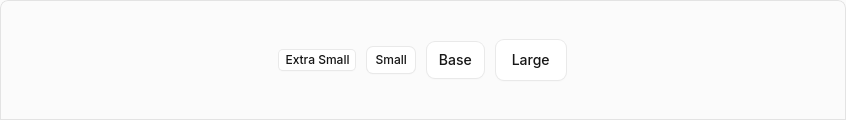

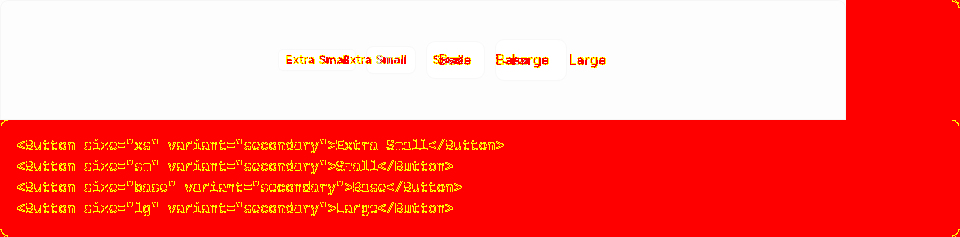

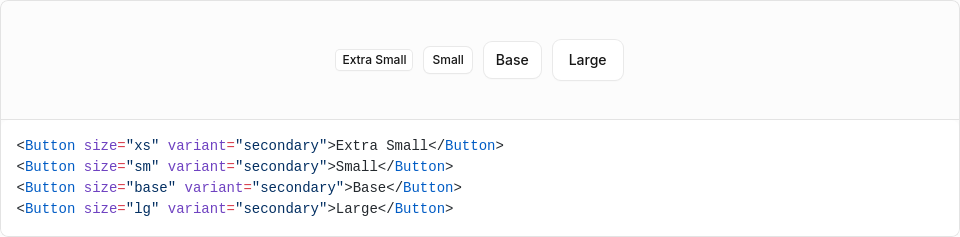

Button / Sizes

121,549 px (53.42%) changed

Before After Diff
Before After Diff

Button / With Icon

104,604 px (50.45%) changed

Before After Diff
Before After Diff

Button / Icon Only

81,733 px (43.66%) changed

Before After Diff
Before After Diff

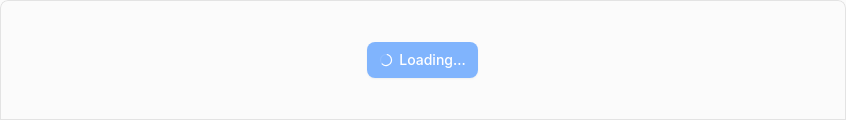

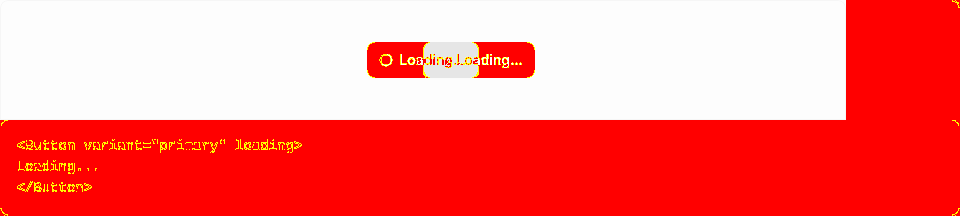

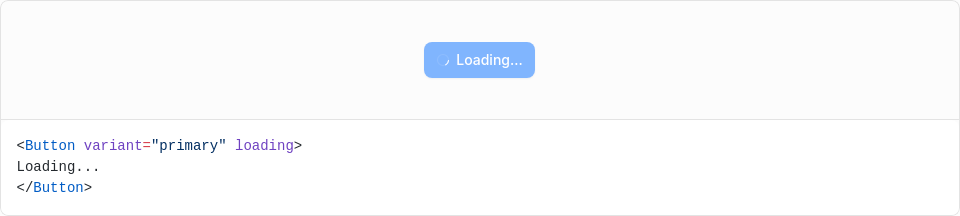

Button / Loading State

108,199 px (52.18%) changed

Before After Diff
Before After Diff

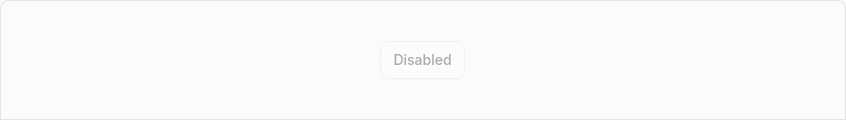

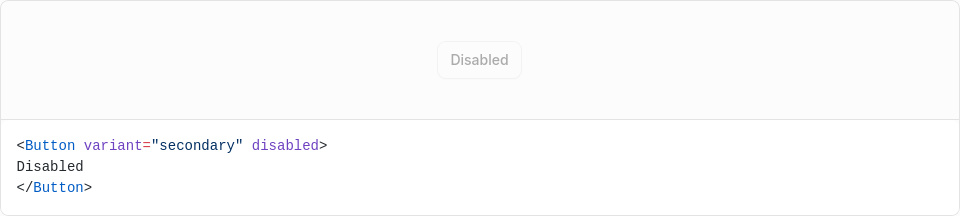

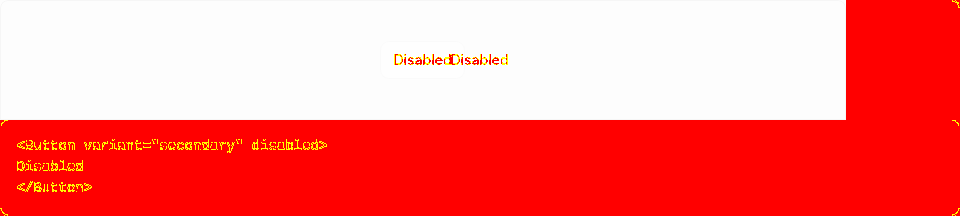

Button / Disabled State

104,660 px (50.47%) changed

Before After Diff
Before After Diff

Dialog (Open)

5,234,939 px (26.14%) changed

Before After Diff
Before After Diff

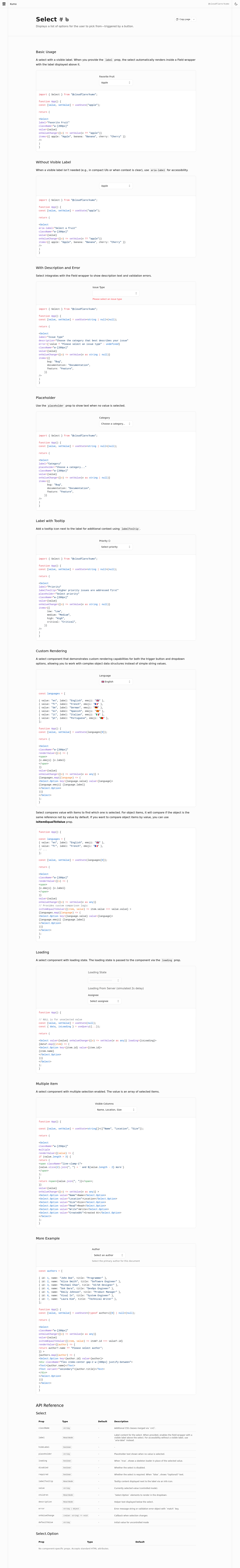

Select (Open)

1,443,618 px (9.78%) changed

Before After Diff
Before After Diff

Generated by Kumo Visual Regression
